88MM STAINLESS BOTTOM MOUNT NYLON GATE TRACK WHEEL (GTR238)

Features:

• Richmond gate track wheels, used on both automatic sliding gates (electric sliding gates) and manual sliding gates, wheels are precision machined to ensure a smooth and consistent rolling action on the gate track. For the gate track to suit, see GTR010.
• This Richmond gate track wheel is manufactured from solid white nylon with a 304 S/S frame for added corrosion protection, wheels are fitted with dual 2RS grade 440 s/s ball bearings to ensure a longer life and superior corrosion protection compared to the standard zinc plated products.
• The frame of these bottom mount gate track wheels is designed to be bolted flat to the bottom of the gate

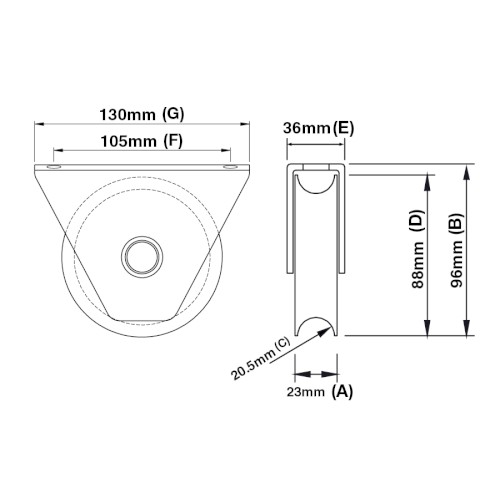

Dimensions & Specifications:

• Wheel width (A): 23mm
• Bottom Gate Height (B): 96mm
• Track Profile Diameter (C): 20.5mm
• Wheel Outer Diameter (D): 88mm
• Overall Width (E): 36mm
• Between Hole Centers (F): 105mm
• Overall Length (G): 130mm
• Capacity: 250kg
• Wheel Grove Diameter (D1): 70mm
• Wheel Material: Nylon
• Frame Material: Stainless Steel
