3M BOLT DOWN SLIDING GATE TRACK – GALVANISED (GTR010)

Features:

• Galvanised sliding gate track to suit Richmond’s range of sliding gate track wheels.
• There are many benefits to using bolt down track instead of the concrete in alternative.
• Besides the ease of installation on existing concrete driveways, it is a simple process to replace a section of the track if damage was to occur in future.

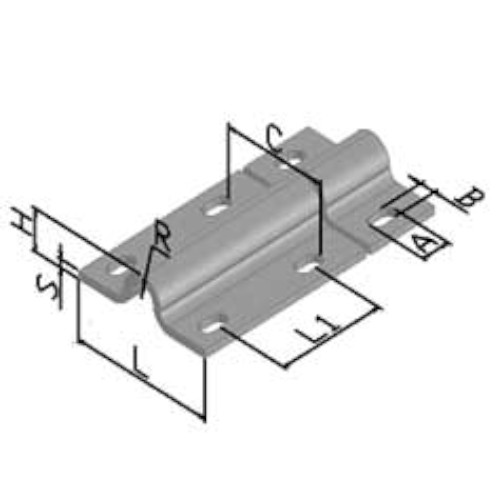

• L: 55mm
• L1: 300mm
• R: 13.5mm
• S: 3.5mm
• A: 11mm
• B: 6.6mm
• C: 40mm
• H: 15mm
• Fixing Holes: 24
• Fasteners Required to Install: 24

Fastener options:

• The GTR010 can be mounted using Anchor Bolts or Drive Anchor Pins to secure it to the ground. Below is a list of fasteners that Richmond can supply for mounting your sliding gate track.

Anchor Bolts for mounting gate track

• ABLM6ZPK8 M6 x 45mm Expanding Hex Head Anchor Bolt – 8 Pack
• GTR174 M6.5 x 35mm long Anchor Bolt
• GTR175 M6.5 x 55mm long Anchor Bolt

Drive Anchor Pins for mounting gate track

• NIA380ZPK25 Pack of 25 Nail-In Mushroom Anchor Pin
• GTR176 M6.5 x 32mm long Drive Anchor Pin
• GTR177 M6.5 x 50mm long Drive Anchor Pin

Richmond can also supply a 6.5mm Drill Bit (GTR178) to drill the holes for the Drive Anchor Pins and Anchor Bolts to be placed in the ground.
