118MM BOTTOM MOUNT GATE TRACK WHEEL (GTR002)

Features:

• Richmond gate track wheels, used on both automatic sliding gates (electric sliding gates) and manual sliding gates, are precision machined to ensure a smooth and consistent rolling action on the gate track.
• For the gate track to suit, see GTR010. Richmond gate track wheels are zinc plated to protect from rust.
• The double bearing design of these gate track wheels ensures a longer life and increases load capacity.
• The frame of these bottom mount gate track wheels is design to be bolted flat to the bottom of the gate.

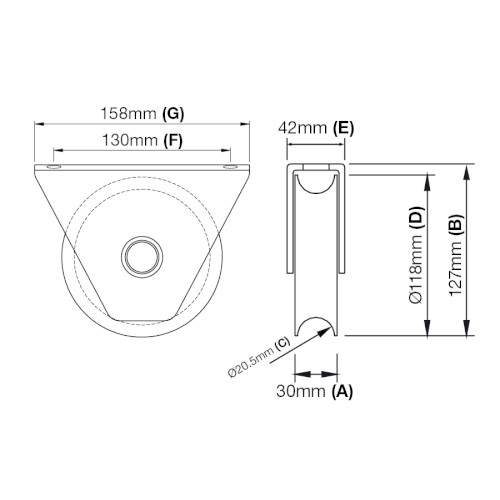

Dimensions & Specifications:

• Wheel width (A): 30mm
• Bottom Gate Height (B): 127mm
• Track Profile Diameter (C): 20.5mm
• Wheel Outer Diameter (D): 118mm
• Overall Width (E): 42mm
• Between Hole Centers (F): 130mm
• Overall Length (G): 158mm
• Capacity: 400kg
• Wheel Grove Diameter (D1): 100mm
