ELECTRIC HYDRAULIC PUMP, STANDARD, 3/3 MANUAL VALVE WITH PENDANT, ENERPAC

$8,260.00 inc. GST

Order in

Local Pickup Only
This product cannot be shipped and must be collected from our store.
SKU: 100073487 Category: Brand:

Specifications:

Maximum Operating Pressure (bar) 700
Cylinder Compatability Single-acting
Reservoir Capacity (cm3) 8000
Usable Oil Capacity (litres) 8,0
Maximum Flow at Rated Pressure 1,0 l/min
Output Flow Rate at 1 bar (l/min) 11,5
Output Flow Rate at 7 bar (l/min) 11,5
Output Flow Rate at 50 bar (l/min) 8,8
Output Flow Rate at 350 bar (l/min) 1,2
Output Flow Rate at 700 bar (l/min) 1,0
Motor Size (kW) 1,25
Motor Hertz 50/60 Hz
Motor Phases 1 Ph
Motor Voltage 208-240 V
Duty Cycle Intermittent
Valve Function Advance / Hold / Retract
Valve Operation Manual
Valve Type 3-way, 3-position, Tandem Center
Valve Model VM33
Power Source Electric

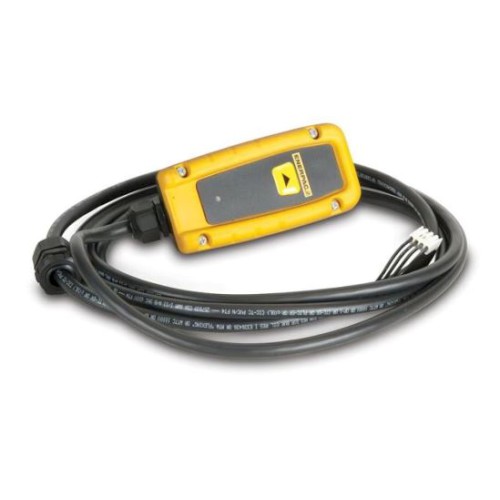

Pump Control Pendant
Motor Electrical Specification 208-240 V, 1 Ph, 50/60 Hz
Sound Level (dBa) 85 – 90
Relief Valve Adjustment Range (bar) 140 – 700
Weight (kg) 32
Weight 32.00 kg
UOM

EACH
MPN ZU4308JE
