CANTILEVER GATE GUIDE WHEEL (GTR030)

Features:

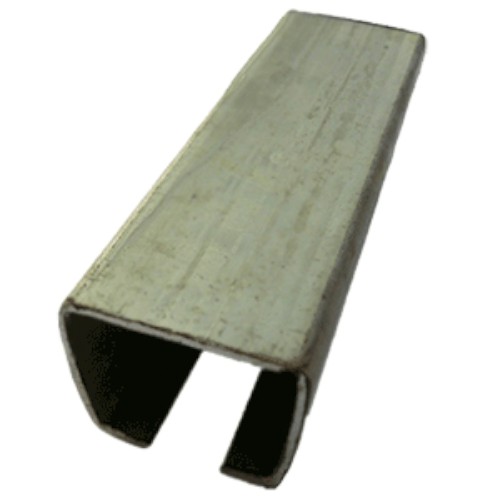

• Suits GTR024 100mm wide cantilever gate channel.
• Richmond cantilever gate guide wheels are clamped in the ends of the gate channel.
• The guide wheel protrudes from the bottom of the channel and will roll smoothly into the Cantilever Gate End Catch (Sold Separately).
• Zinc Plated to protect from rust, our cantilever gate guide wheels feature a heavy gauge steel construction and high-quality wheels.

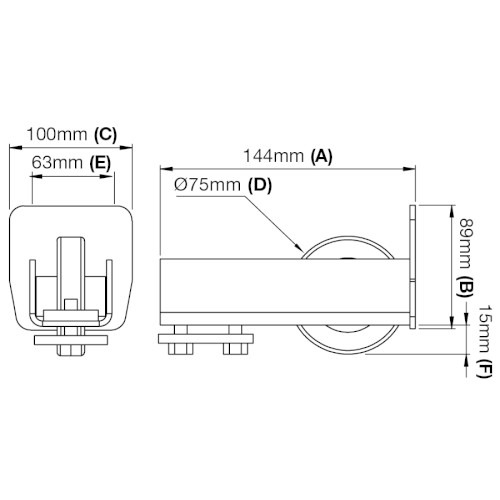

Dimensions & Specifications:

• A: 144mm
• B: 89mm
• C: 100mm
• D: 75mm
• E: 63mm
• F: 15mm
