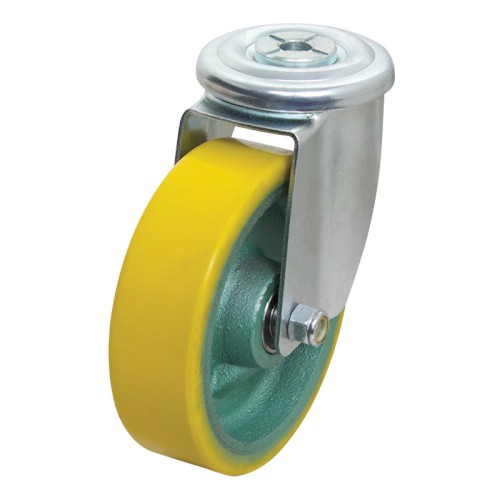

125MM POLY TYRE ON CAST IRON CENTRE BOLT HOLE 300 SERIES CASTOR (S5220B)

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Features:

• The S5220B manufactured by Richmond is a swivel frame castor and uses a polyurethane tyred cast iron wheel.
• This swivel castor is one of their 300 series bolt hole range and can safely take loads up to 200kg.
• The S5220B is assembled with ball bearings on the castors axle and is mounted with a bolt.
• This castors swivel frame permits the load to be steered.
• The polyurethane tyred cast iron wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: PU549).
• This model can also be ordered without a brake (part number S5220).

Dimensions & Specifications:
