TRANSMISSION LIFTER PASSENGER VEHICLE GVM<2300KG FOOT

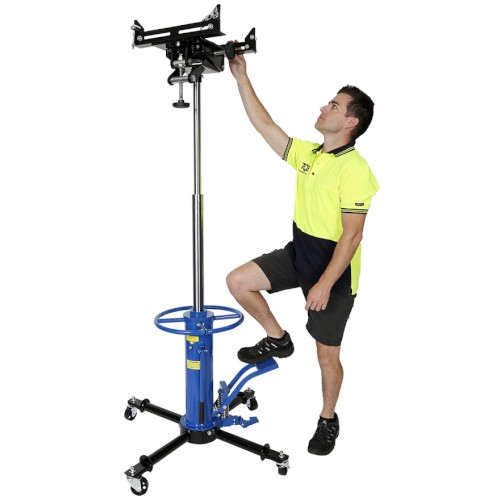

This TradeQuip “Made for the Trade” 500kg Transmission Lifter is designed for passenger Car transmissions. Features a universal mounting cradle that provides a 2 way tilt range and a manually operated hydraulic system with smooth hydraulic lift and descent. The hydraulic system also includes a bypass system to prevent over extension and accidental overloading. The sturdy and stable design offers safety and security when removing and installing large and heavy transmissions.

Features

• Designed Designed for passenger car transmissions
• Base frame constructed of high-grade steel
• 2-Stage hydraulic lift
• High quality large diameter hydraulic cylinder
• Universal 2 way tilt cradle with safety chains
• Lead-free paint finish for a long-lasting finish
• Paint finish is oil, grease and dirt-resistant for easy cleanup
• Heavy-duty steel swivel castors

Specifications

• Safe Working Capacity: RWD/FWD/AWD GVM <2,300KG
• Rated Capacity: 500kg
• Working Height: 895mm – 1875mm
• Lifting Platform Size: 340mm x 240mm
• Lifting Platform Bracket Ranges ID: 420mm x 250mm to 420mm x 435mm
• Tilt Angle:  Left  7°
• Tilt Angle:  Right 15°
• Weight: 73kg

Intended Use

Designed for the removal, installation and transportation (in the lowered position) of passenger vehicle transmissions that are raised by an in-ground or above-ground lift.
