TRANSMISSION LIFTER PASSENGER VEHICLE <2000KG

$860.00 inc. GST

Order in

Local Pickup Only
This product cannot be shipped and must be collected from our store.

SKU: 101130955 Category: Jacks Brand: TRADEQUIP

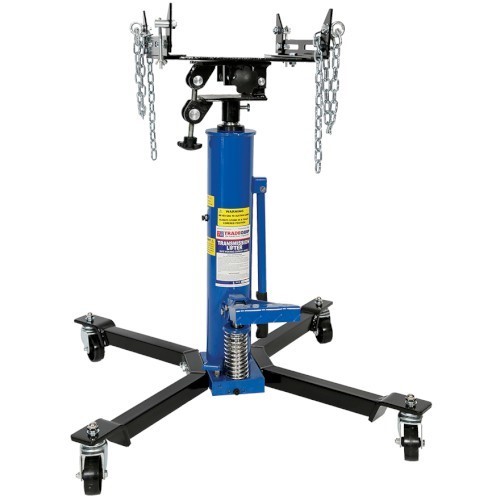

This TradeQuip “Made for the Trade” 2-Stage hydraulic Telescopic Transmission Lifter offers a wide range of versatility designed to help increase workshop productivity. Rated to safely work with Transmissions from vehicles with a GVM of less than 2,000kgs, the universal mounting head provides a wide fore and aft tilt range. The foot operated manual hydraulic system has a smooth hydraulic lift and descent. The foot operated pump with a foot release valve lever provides a steady and mechanically controlled safe descending speed.

Features:

Designed for lifting & lowering passenger car transmissions
Durable steel frame
Adjustable lifting platform for quick adjustment for most pan configurations
Load control chains hold transmission in place
4 swivel castors provide stability and easy manoeuvrability

Specifications:

Safe Working Capacity: RWD/FWD GVM <2,000kg
Rated Capacity: 500kg
Maximum Height: 1768mm
Minimum Height: 820mm
Lifting Platform: 250 x 362mm
Forward Tilt: 9˚
Rearward Tilt: 17˚
Nett Weight: 52kg
Carton: 800 x 510 x 320mm
Gross Weight: 59kg

Intended Use

Designed for the removal, installation and transportation (in the lowered position) of passenger vehicle transmissions that are raised by an in-ground or above-ground lift.
