ITM LEVER HOIST, LOAD LIMITED, MINI, 500 KG, 1.5 METRE LIFT

Features:

• 500kg Rated capacity
• 1.5m Standard lift
• 5mm Grade 80 chain
• White colour coded to W.L.L. for safety
• Load limited protection system
• Automatic double pawl braking system
• Hooks fitted with spring safety latches
• Tested & certified to AS 1418.2

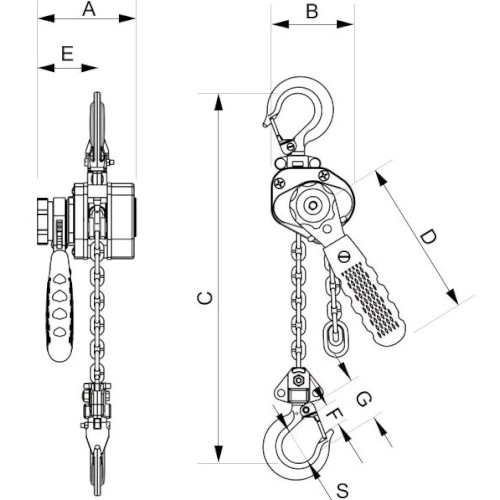

Dimensions & Specifications:

• Weight: 2.6kg
• Dimension A: 98mm
• Dimension B: 85mm
• Dimension C: 270mm
• Dimension D: 165mm
• Dimension E: 60mm
• Dimension F: 43mm
• Dimension G: 23.5mm
• Dimension S: 35.5mm
