ITM G80 LIFTING POINT, OBLONG EYE BOLT, M30, 10.6T

Features:

• Premium-grade heat treated alloy steel
• Specifications, batch and brand markings as per Australian Standards requirements
• Tested and certified to AS 3776

Specifications:

• W.L.L. 0°: 10.6T
• W.L.L. 90°: 5.3T
• Thread: M30

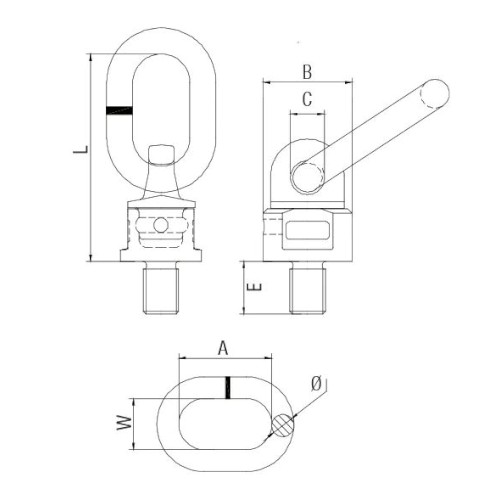

• Dimension A: 85mm
• Dimension B: 66mm
• Dimension C: 23.5mm
• Dimension E: 35mm
• Dimension L: 166mm
• Dimension W: 40mm
• Dimension : 20.5mm
