ITM G80 LIFTING POINT, OBLONG EYE BOLT, M20, 4T

$165.00 inc. GST

Order in

SKU: 101177268 Category: Eye Bolts/Nuts Brand: ITM

Description
Additional information

Features:

Premium-grade heat treated alloy steel
Specifications, batch and brand markings as per Australian Standards requirements
Tested and certified to AS 3776

Specifications:

W.L.L. 0°: 4T
W.L.L. 90°: 2T
Thread: M20

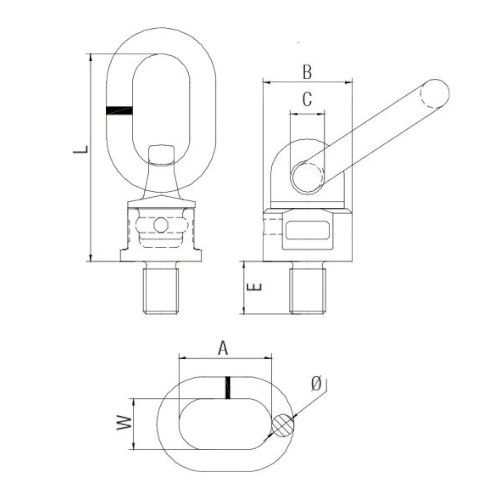

Dimension A: 70mm
Dimension B: 49.5mm
Dimension C: 19mm
Dimension E: 20mm
Dimension L: 125mm
Dimension W: 35mm
Dimension : 16mm

Diameter	M20
Size	WLL 4T
Thread Type	Metric
UOM	EACH
MPN	TM9812-04020
