ITM G80 LIFTING POINT, MEGA EYE BOLT, M30, 5T

Featurers:

• Premium-grade heat treated alloy steel
• Specifications, batch and brand markings as per Australian Standards requirements
• Tested and certified to AS 3776

Specifications:

• W.L.L.: 5T
• Thread: M30

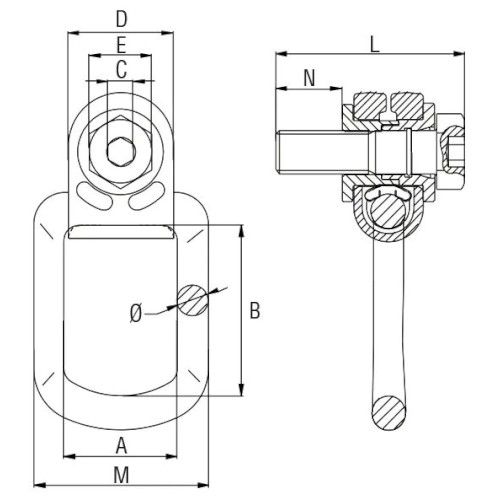

• Dimension A: 73mm
• Dimension B: 106mm
• Dimension C: 17mm
• Dimension D: 68mm
• Dimension E: 41mm
• Dimension M: 120mm
• Dimension L: 132mm
• Dimension N: 48mm
• Dimension : 27mm
