ITM G80 LIFTING POINT, MEGA EYE BOLT, M18, 2T

Features:

• Premium-grade heat treated alloy steel
• Specifications, batch and brand markings as per Australian Standards requirements
• Tested and certified to AS 3776

Specifications:

• W.L.L.: 2T
• Thread: M18

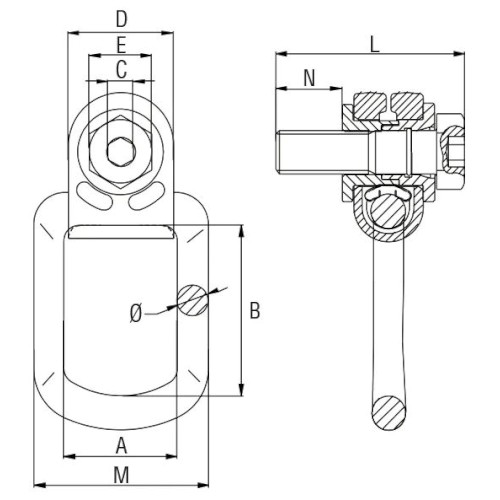

• Dimension A: 54mm
• Dimension B: 80mm
• Dimension C: 12mm
• Dimension D: 50mm
• Dimension E: 30mm
• Dimension M: 83mm
• Dimension L: 237mm
• Dimension N: 180mm
• Dimension : 16mm
