ITM G80 LIFTING POINT, MEGA EYE BOLT, M12, 1T

Features:

• Premium-grade heat treated alloy steel
• Specifications, batch and brand markings as per Australian Standards requirements
• Tested and certified to AS 3776

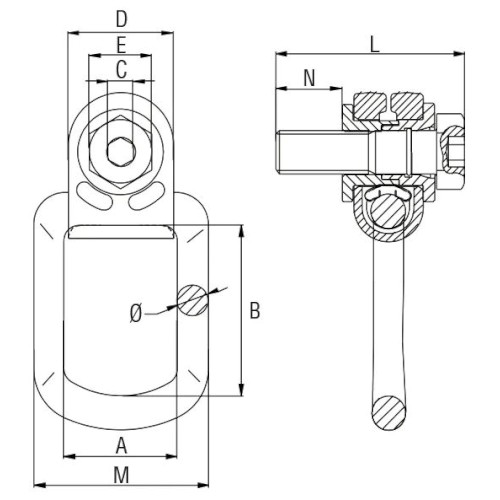

Specifications:

• W.L.L.: 1T
• Thread: M12
• Dimension A: 40mm
• Dimension B: 54mm
• Dimension C: 8mm
• Dimension D: 36mm
• Dimension E: 19mm
• Dimension M: 68mm
• Dimension L: 62mm
• Dimension N: 18mm
• Dimension : 18mm
