ITM G80 LIFTING POINT, MEGA EYE BOLT, M10, 0.63T

Features:

• Premium-grade heat treated alloy steel
• Specifications, batch and brand markings as per Australian Standards requirements
• Tested and certified to AS 3776

Specifications:

• W.L.L.: 0.63T
• Thread: M10

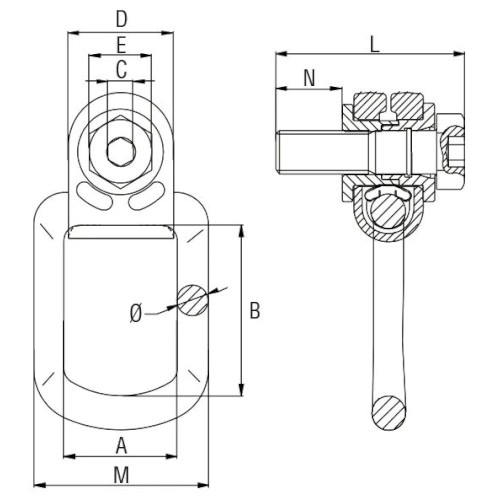

• Dimension A: 35mm
• Dimension B: 52.5mm
• Dimension C: 6mm
• Dimension D: 30mm
• Dimension E: 17mm
• Dimension M: 45mm
• Dimension L: 52mm
• Dimension N: 16mm
• Dimension : 14mm
