HOLEMAKER UNI SHANK GOLD SERIES, SET OF 10, METRIC, SHORT

Holemaker Uni Shank Gold Series 10 Cutter Piece Set Metric Short ATSET-B

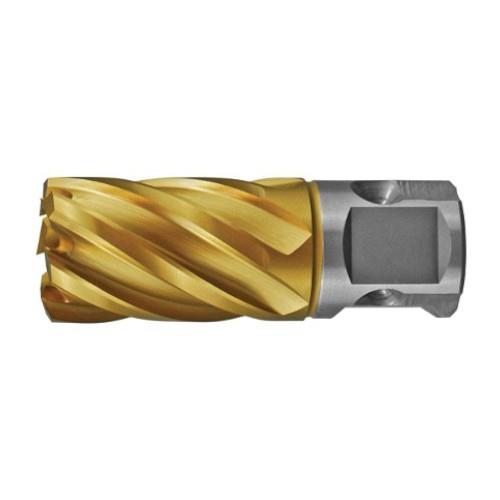

Picture shown is for illustration purpose only. Size may vary. Please refer to description.

Features:

• Titanium Nitride Coating – The Titanium Nitride coating significantly increases the tool life by providing the following benefits:
  • Increased surface hardness to 85HRC
  • Ceramic surface, reducing friction by up to 30%
  • Especially resistant to cold welding
  • Suitable for cutting a wide range of materials
• M2AL High Speed Steel Material – M2AL High Speed Steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.
• Step Hardened Process – This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is less susceptible to breakage than standard high speed steel cutters.
• Multi-Cut Geometry – Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut, and helps to enhance centering.
• Fully Ground With Internal Relief – This feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.
• Universal Shank – 19.05mm (3/4″) Universal Shank with 2 flat sections to suit most magnetic base drilling machines.

Specifications:

Part No. Diameter Depth of Cut
AT1225 12mm 25mm
AT1325 13mm 25mm
AT1425 14mm 25mm
AT1625 16mm 25mm
AT1725 17mm 25mm
AT1825 18mm 25mm
AT2025 20mm 25mm
AT2225 22mm 25mm
AT2425 24mm 25mm
AT2625 26mm 25mm
