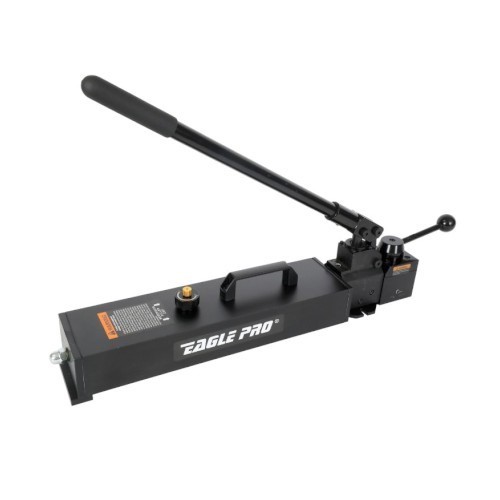

HAND PUMP – DOUBLE ACTING – 2 SPEED – 140 IN3

With nearly 3 decades of manufacturing hydraulic tools for industrial applications, Eagle Pro Hydraulics has become the trusted partners for applications spanning from offshore plant maintenance to mining, infrastructure, commercial & industrial. Eagle Pro Hydraulics are manufactured to ISO 9001:2018 through international quality assurance programs which involve consistent observation of administration, management, manufacturing and production control. Eagle Pro hydraulic cylinders meet or exceed ANSI B30.1. This results in reliable & dependable high-quality products you can count on every time.

Features

• Spring loaded ram return system, allowing controlled retraction of the ram.
• High strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.
• Pumps have an automatic overload system to help prevent damage to cylinders, pumps and accessories.
• Easily adapts to hoses, rams, pumps, spreaders, and other accessories using Eagle Pro 3/8″ NPT and 1/4″ NPT fittings.
• Industrial strengthened seals prevent costly leaks.
• Hardened alloy steel guide ring eliminates over travel and provides support for off-centre loads without damaging the cylinder walls.
• Eagle Pro ram couplers fitted with dust covers minimising fluid contamination.

Specifications

• Hand Pump Compatibility: Eagle Pro double acting cylinders
• Speed: Two speed hand pump
• Usable Oil Volume: 2300cm3
• Pressure Rating 1st Stage: 25 BAR
• Pressure Rating 2nd Stage: 700 BAR
• Oil Displacement Per Stroke 1st Stage: 33cm3
• Oil Displacement Per Stroke 2nd Stage: 3.3cm3
• Handle Force: 49kg

Intended Use
