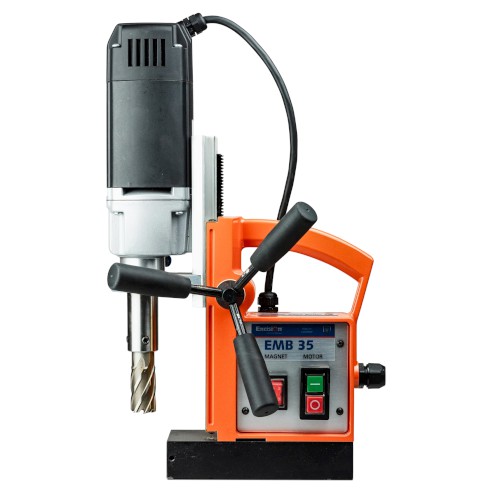

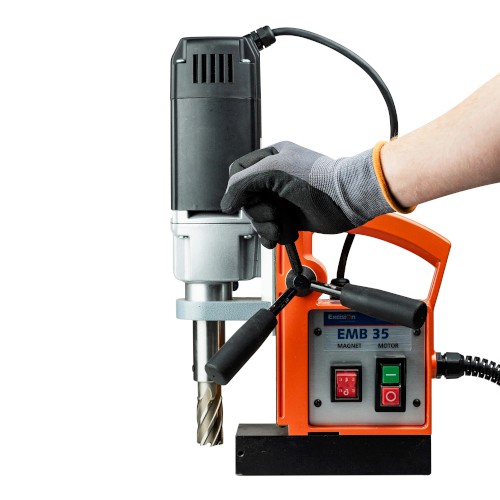

EXCISION EMB35 – MAGNETIC BASE DRILL – 35MM CAPACITY

$1,353.00 inc. GST

Order in

Local Pickup Only
This product cannot be shipped and must be collected from our store.
SKU: 100104609 Category: Brand:

The Excision EMB35 magnetic based drill is perfect for drilling holes under 35mm. Weighing only 10.6kg, this ultra-portable German made drill is suitable for any small engineering application. The direct Weldon arbor type spindle is capable of handling all 19mm shank core drills.

Features

  • Solid brass guides with spring loading for rigid gliding and no vibration
  • 2 coil 9,000N magnetic adhesion for industrial use
  • Durable switches for long lasting use
  • Direct Weldon arbor type spindle for use with all 19mm shank core drills
  • Lightweight and compact at only 10.6 kg
  • Made in Germany
  • 2 year warranty

Specifications

  • Core Drill Dimensions: 12.0-35.0mm
  • Cutting Depth: 50.0mm
  • Twist Drill: 1.0-13.0mm with MT3 DIN 1897 short
  • Arbors: 19mm Weldon Shank
  • Stroke: 120mm
  • Gearbox-On-load speed: 450rpm
  • Power Consumption: 1,100 W
  • Voltage: 230V 50/60Hz
  • Tool Force (10mm)/Magnetic Adhesion: 2,100N/10,000N
  • Magnetic Base: 70×185mm
  • Weight: 10.6kg

Includes

  • EMB35 Magnetic Drill
  • Carrying Case
  • Safety Strap
  • Coolant Device
  • Operating Instructions
Weight 10.60 kg
UOM

EACH
MPN 18400
