ENGINE CRANE 3000KG

$1,364.00 inc. GST

Order in

Local Pickup Only
This product cannot be shipped and must be collected from our store.
SKU: 100078304 Category: Brand:
This Heavy Duty TradeQuip “Made for the Trade” Engine Crane has a long stroke lifting ram, a single action pump with a maximum load capacity of 3,000kg. Very simple to use manual hydraulic operation. The jib extends to the desired lifting capacity of 1000kg, 2000kg or 3000kg secured by a single locking pin. Mounted on heavy duty castor wheels for excellent manoeuvrability around the workshop. The lifting range is 0-2500mm so any large engine can be lifted clear out of the engine bay with little effort. With great stability of its wide legs, this crane can also be used to lift machines or other heavy items, making for an excellent piece of equipment for the workshop or warehouse.

 Features
  • Industrial grade engine crane
  • Heavy duty hydraulic pump
  • Adjustable boom in four positions for lifting
  • Robust steel fabricated legs with structural supports
  • Large castor wheels for easy mobility

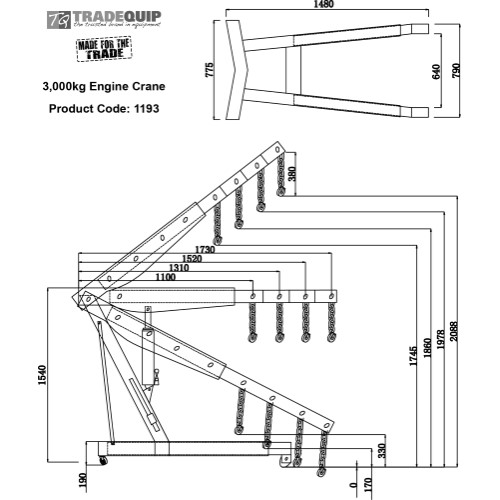

Specifications

  • Safe Working Capacity: 3,000kg
  • Folded Height: 1540mm
  • Maximum Lifting Height @ 3000kg: 1745mm
  • Maximum Lifting Height @ 1000kg: 2088mm
  • Jib Length Fully Retracted @ 3000kg: 1100mm
  • Jib Length Fully Extended @ 1000kg: 1730mm
  • Overall Length Fully Extended: 2385mm
  • Overall Length Fully Retracted: 1480mm
  • Overall Width Fully Extended: 875mm
  • Overall Width Fully Retracted: 785mm
  • Distance Between Ram & Chain at 3T (Max hydraulic lift): 470mm
  • Distance Between Ram & Chain at 2T (Max hydraulic lift): 650mm
  • Distance Between Ram & Chain at 1.5T (Max hydraulic lift): 830mm
  • Distance Between Ram & Chain at 1T (Max hydraulic lift): 1020mm
  • Leg Height 190mm
  • Nett Weight: 121.5kg
  • Carton 1 of 3 : 1330 x 860 x 100mm (Weight: 29kg)
  • Carton 2 of 3 : 1470 x 300 x 200mm (Weight: 82kg)
  • Carton 3 of 3 : 700 x 180 x 150mm (Weight: 15kg)

Intended Use

For regular professional use, to raise and/or lower diesel engines and transmissions during service or repair work.

Weight 121.50 kg
Dimensions 1500.00 × 860.00 × 500.00 mm
Size

WLL 3000KG
UOM

EACH
MPN 1193
