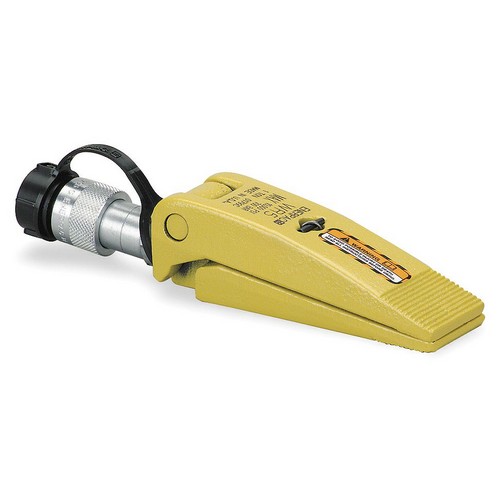

CYLINDER RAM, 10T, LOW HEIGHT, ENERPAC

• Compact, flat design for use where other cylinders will not fit
• Mounting holes permit easy fixturing
• Baked enamel finish for increased corrosion resistance
• CR400 coupler and dust cap included
• Hard chrome plated high-quality steel plungers
• Grooved plunger ends require no saddle
• Single-acting spring return

Specifications

• Maximum Operating Pressure (bar): 700
• Capacity Class (tonnage): 10
• Maximum Cylinder Capacity Advance (kN): 101
• Stroke (mm): 11
• Collapsed Height (mm): 43
• Extended Height (mm): 54
• Return Type: Single-Acting, Spring Return
• Plunger Type: Solid
• Material: Steel
• Cylinder Effective Area Advance (cm2): 14.5
• Oil Capacity Advance (cm3): 18
• Surface Treatment: Paint
