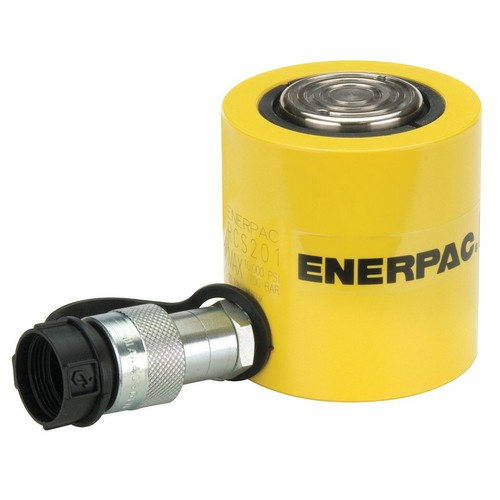

CYLINDER RAM, 10T, LOW HEIGHT, ENERPAC

• Lightweight, low profile design for use in confined spaces
• Baked enamel finish for increased corrosion resistance
• Plunger wiper reduces contamination, extending cylinder life
• CR-400 coupler and dust cap included on all models
• Grooved plunger end with threaded holes for mounting tilt saddles
• Plated steel plungers
• Single-acting spring return

Specifications

• Maximum Operating Pressure (bar): 700
• Capacity Class (tonnage): 10
• Maximum Cylinder Capacity Advance (kN): 101
• Stroke (mm): 38
• Collapsed Height (mm): 88
• Extended Height (mm): 126
• Return Type: Single-Acting, Spring Return
• Plunger Type: Solid
• Material: Steel
• Cylinder Effective Area Advance (cm2):14.5
• Oil Capacity Advance (cm3): 55
• Surface Treatment: Paint
