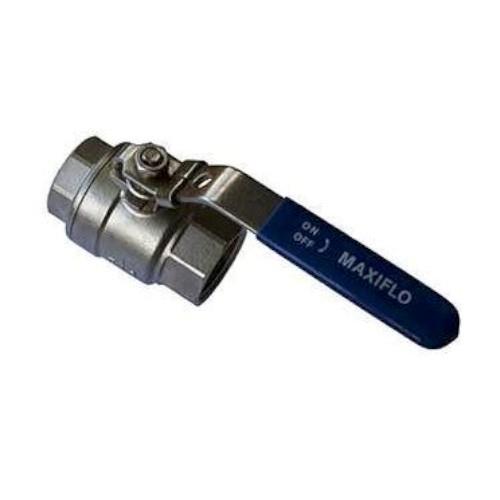

BALL VALVE, 2″ BSPF, 3 PCE, STAINLESS

Stainless Steel Ball Valve 3- PCE Full Bore

• For air, water, Hot/Cold corrosive fluid in harsh environments.

Specifications

• Thread: AS1722.1
• Max Working Temperature: 180°C
• Cold Working Pressure: 6895kPa

Materials

• Body: CF8M
• Ball: 316 Stainless Steel
• Seat:Te?on (PTFE)
• Stem: 316 Stainless Steel
• Lever: 316 Stainless Steel with Locking Device

About Ball Valves:

• A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
• When the orifice is in line with both ends of the valve flow will occur.
• When the valve is closed the orifice is perpendicular to the ends of the valve.
• The lever/handle will be in line with the orifice position, an indication of the valve position.
