3/4″ – 1″ TORQUE MULTIPLIER 2500NM

$956.00 inc. GST

Order in

Local Pickup Only
This product cannot be shipped and must be collected from our store.
SKU: 101139725 Category: Brand:
FEATURES
  • Professional quality tool designed to provide mechanical advantage in applying high torque value
  • Ideal for when high torque applications are required or where space is limited
  • All pieces are set in a protective blow mould case

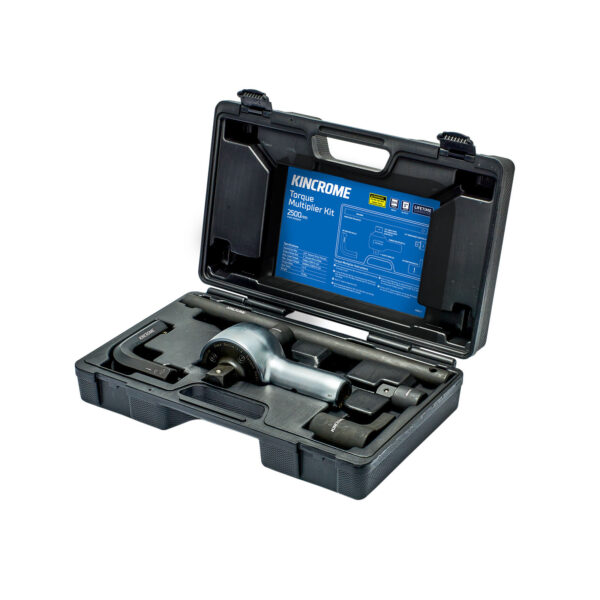

CONTENTS
  • 1:3.3 Torque Multiplier
  • 2 x 3/4″ Breakaway Adaptors
  • 380mm Reaction Bar
  • 90 Degree Reaction Bar
  • 90 Degree Reaction Base
  • L-Type Hex Key
  • Protective Blow Mould Case
TECHNICAL SPECIFICATIONS
Input Drive (Female) 3/4″
Output Drive (Male) 1″
Max Input Torque 758Nm (559 ft-lb)
Max Output Torque 2500Nm (1850 ft-lb)
Torque Ratio 1:3.3
Gear Ratio 1:4
Weight 15.8kg
Weight 7.85 kg
Dimensions 401.00 × 256.00 × 104.00 mm
UOM

EACH
MPN K8511
Barcode 9312753073684
