2HP BENCH-MOUNTED BELT GRINDER WITH NVR SWITCH – 1,220 X 50MM(48 X 2″) BELT

$1,099.00 inc. GST

Order in

Local Pickup Only
This product cannot be shipped and must be collected from our store.
SKU: 101200112 Category: Brand:

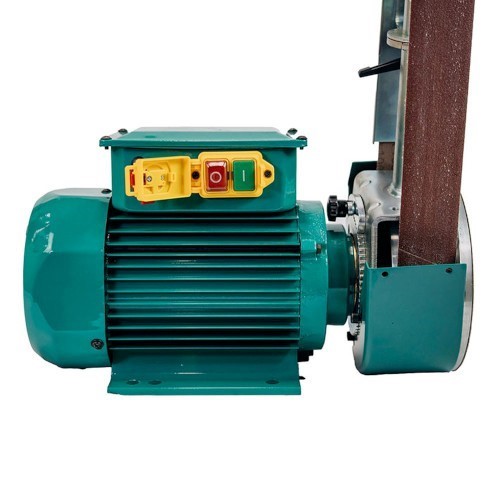

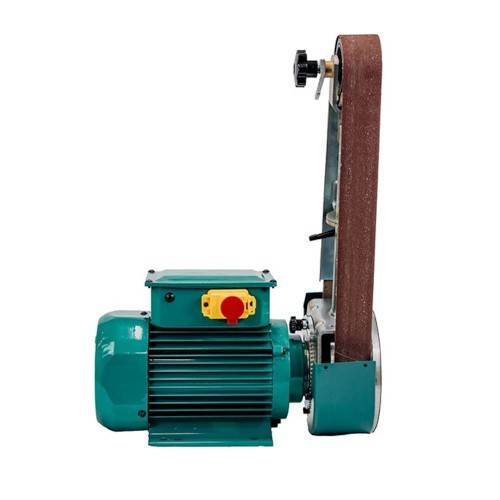

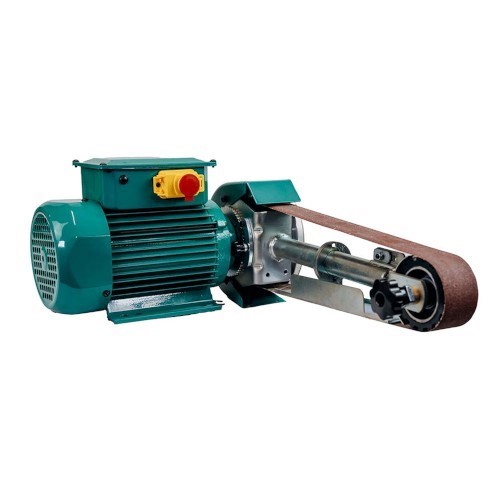

The Abbott & Ashby 2HP Bench-Mounted Belt Grinder is built for tough jobs, featuring a powerful 2HP motor and anti-vibration feet for stable operation. The NVR E-Stop switch provides added safety by preventing automatic restarts after power outages.

Features
  • Powerful 2HP motor to handle the toughest tasks
  • Rubber antivibration feet to avoid vibrating when mounted to a bench or pedestal
  • Mounting pattern suits pedestal stand
  • Fitted with a No-Voltage Release E-Stop Switch which kills power to the machine during a power outage and won’t turn back on when power is restored
  • Patent pending design allows for fast changes to the working angle without disassembly in 6° increments
  • Top platen can be used for flat surface grinding and can be moved out of the way for convenient free strapping
  • Easy belt tracking adjustment knob and lock
  • Fast belt changes with patent pending self-locking push in push out arm

Specifications:

  • 1.5kW (2HP) motor
  • 1,220 x 50mm (48 x 2”) belt – 240 Grit
  • 178mm (7”) diameter disc – 120 Grit
  • 89mm (3 1/2”) contact wheel
Weight 24.00 kg
Dimensions 238.00 × 435.00 × 601.00 mm
UOM

EACH
MPN 812146
Barcode 9312198867602
