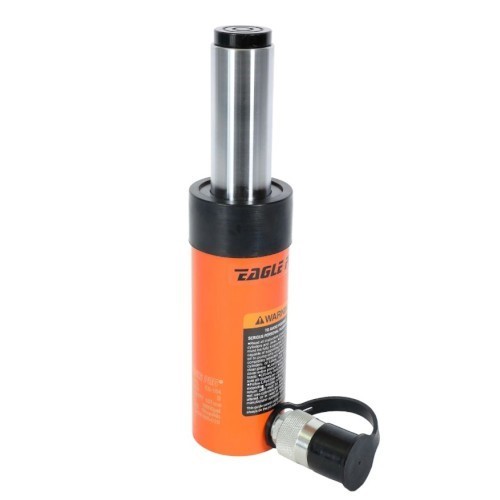

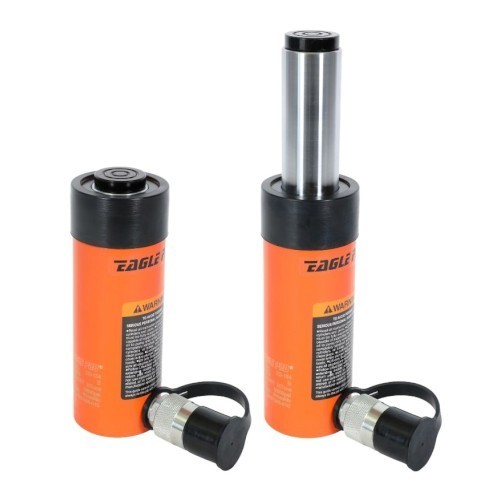

15T SINGLE ACTING RAM – 101MM STROKE

With nearly 3 decades of manufacturing hydraulic tools for industrial applications, Eagle Pro Hydraulics has become the trusted partners for applications spanning from offshore plant maintenance to mining, infrastructure, commercial & industrial. Eagle Pro Hydraulics are manufactured to ISO 9001:2018 through international quality assurance programs which involve consistent observation of administration, management, manufacturing and production control. Eagle Pro hydraulic cylinders meet or exceed ANSI B30.1. This results in reliable & dependable high-quality products you can count on every time.

Features

• Spring loaded ram return system, allowing controlled retraction of the ram.
• High strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.
• Pumps have an automatic overload system to help prevent damage to cylinders, pumps and accessories.
• Easily adapts to hoses, rams, pumps, spreaders, and other accessories using Eagle Pro 3/8″ NPT and 1/4″ NPT fittings.
• Industrial strengthened seals prevent costly leaks.
• Hardened alloy steel guide ring eliminates over travel and provides support for off-centre loads without damaging the cylinder walls.
• Eagle Pro ram couplers fitted with dust covers minimising fluid contamination.

Specifications

• Cylinder Capacity @ 10,000psi (700 BAR): 15,000kg
• Stroke: 101mm
• Effective Cylinder Area: 21.2cm2
• Oil Capacity: 214.12cm3
• Collapsed Height: 200mm
• Extended Height: 301mm

Intended Use
